PINGO PANEL with US patent

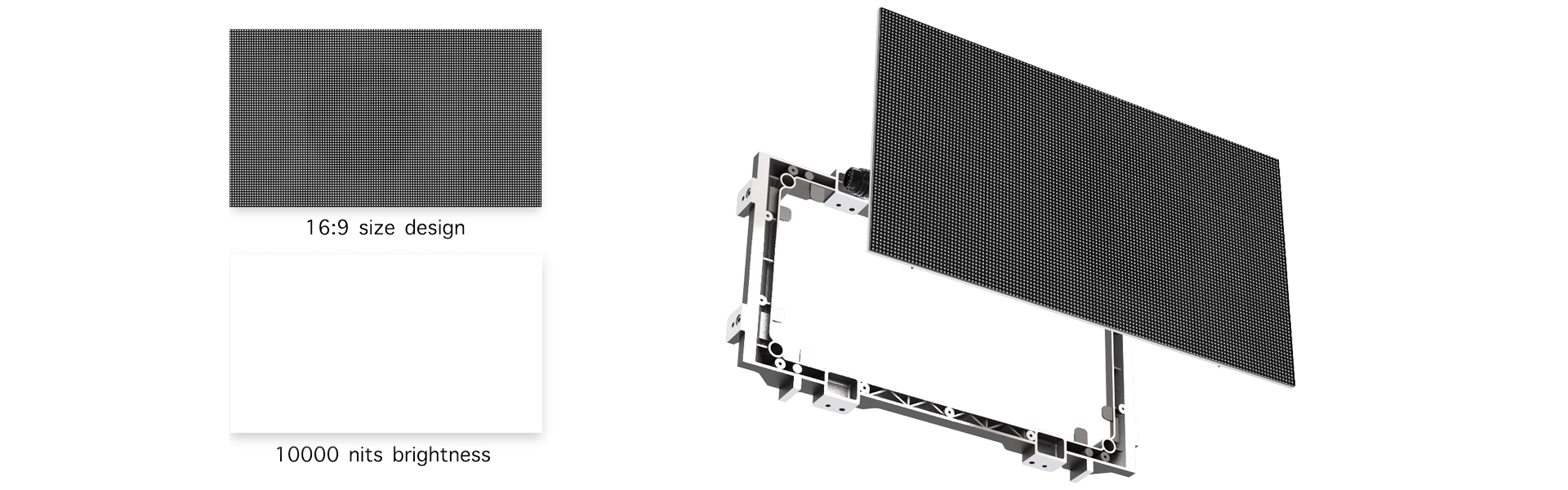

Industry-exclusive non-magnetic front-service fine-pitch outdoor LED design

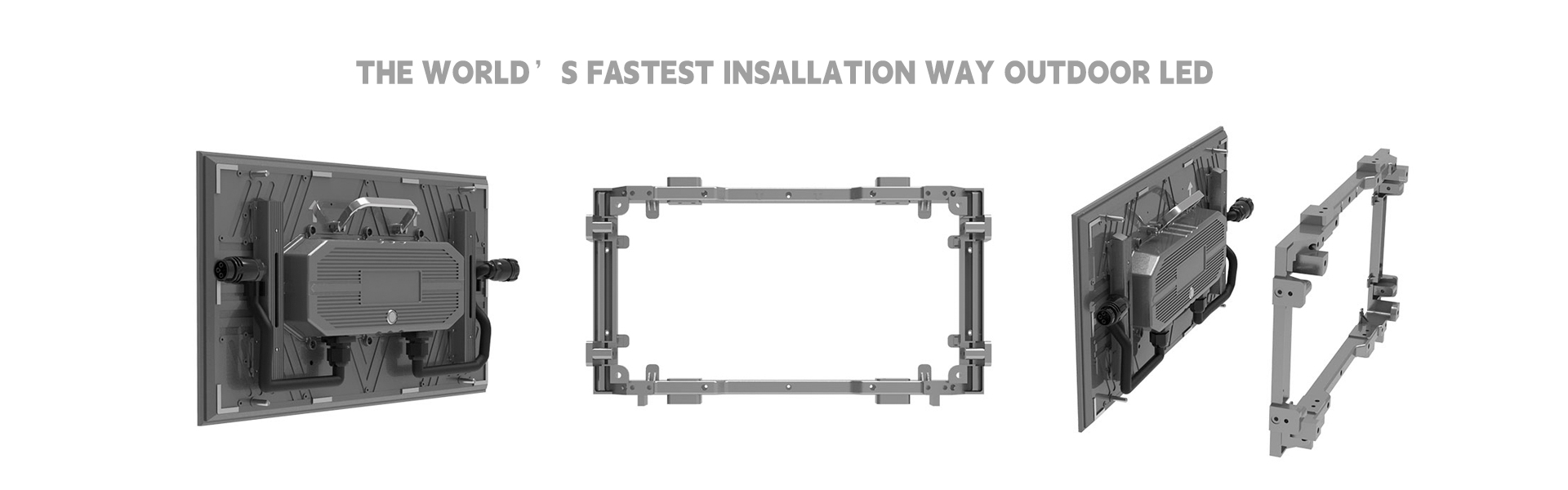

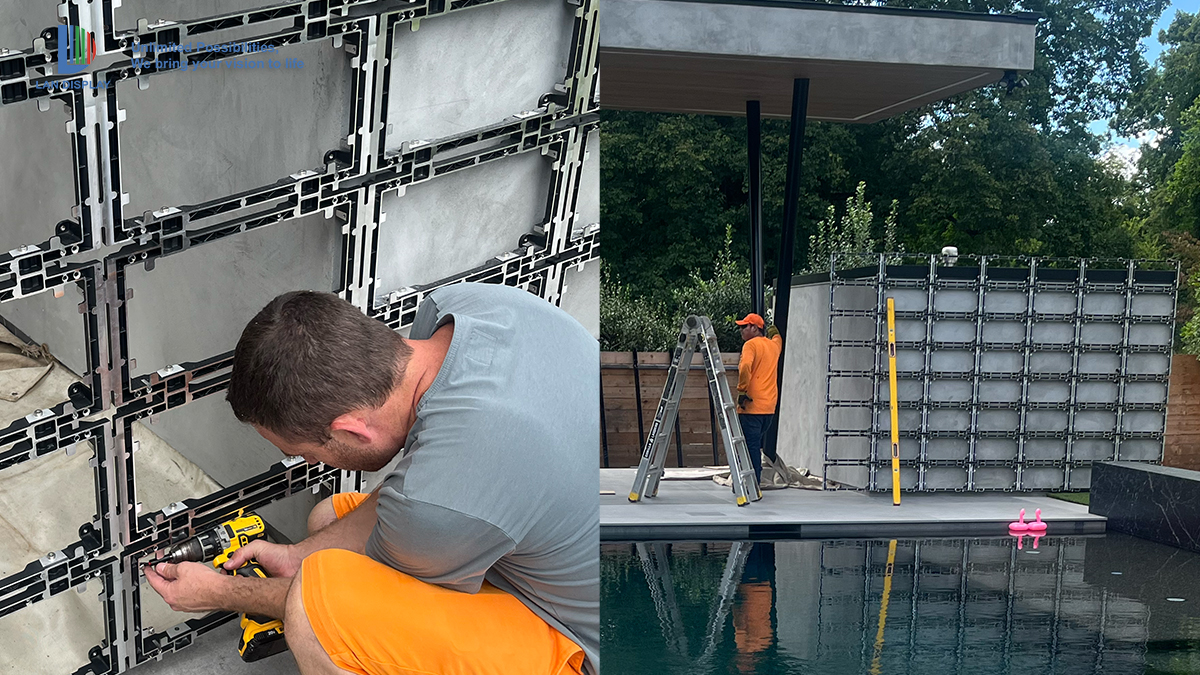

Single-person installation & maintenance

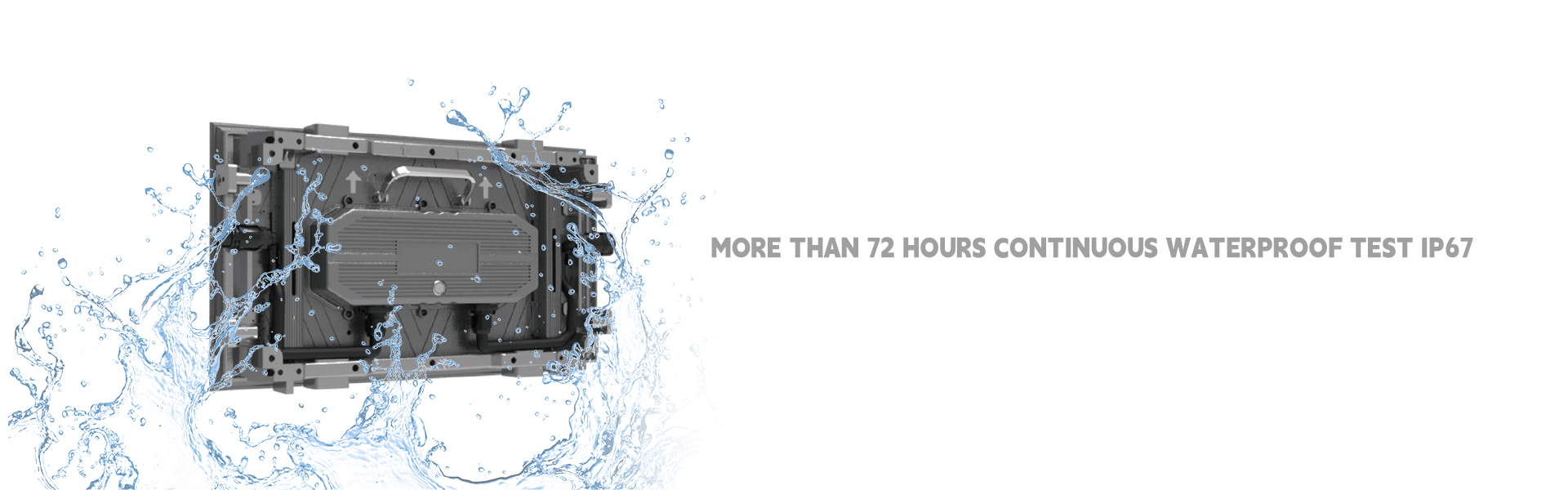

Full IP68 outdoor dustproof & waterproof rating
ETL Listed, backed by US patents
Superior long-term reliability vs conventional magnetic front-access solutions

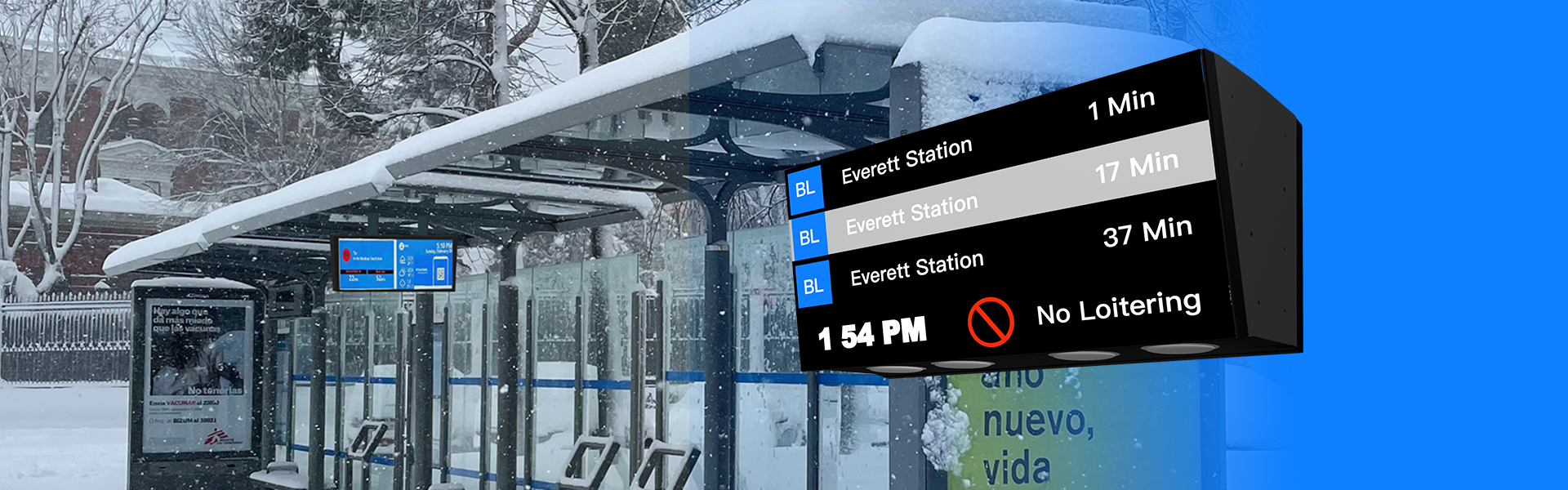

Outdoor message sign		Value	Value	Value	Value
Physical parameter	LED Type	smd 3in1 1010	smd 3in1 1010	smd 3in1 1415	smd 3in1 1921
	Pixel Pitch(mm)	1.25	1.875	2.5	3.75

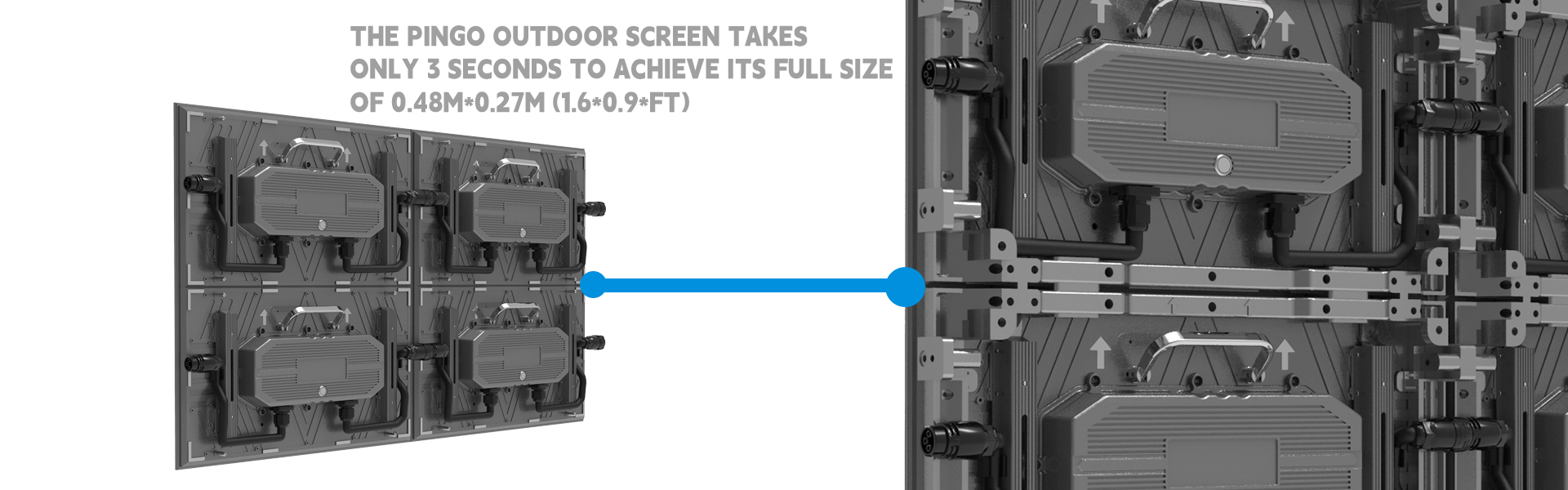

	Panel dimensions(WxHxDmm)	480x270x50	480x270x50	480x270x50	480x270x50
	Pixel per panel	384x216	256x144	192x108	128x72
	Resolution ratio	16:09	16:09	16:09	16:09
	Panel weight(kg)	3.8	3.8	3.8	3.8
	Panel material	aluminum	aluminum	aluminum	aluminum
	Cabinet dimensions(WxHmm)	480x270	480x270	480x270	480x270
Optoelectrical Parameter	Brigtness(nits)	4500	5000	8000 (black led 5000)	10000 (black led 5000)
	Refresh rate(Hz)	≥3840	≥3840	≥3840	≥3840
	Gray scale(Bit)	16	16	16	16
	Contrast ratio	7500:1	7500:1	7500:1	7500:1
	Color temperature(K)	8000	8000	8000	8000
	Viewing Angle (H/V) (°)	160/160	160/160	160/140	140/140
	Driving Type	1/54	1/36	1/18	1/9
	AC Operating Voltage (V)	100-240	100-240	100-240	100-240
	Power Consumption (Max./Avg.)(W/panel)	150/70	150/70	150/70	150/70
Application Parameter	Storage Temperature (℃)	‑40~+60	‑40~+60	‑40~+60	‑40~+60
	Operating Temperature (℃)	‑30~+50	‑30~+50	‑30~+50	‑30~+50
	Storage Humidity (RH)	10%~90%	10%~90%	10%~90%	10%~90%
	Operating Humidity (RH)	10%~90%	10%~90%	10%~90%	10%~90%
	IP Rating (Front/Rear)	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65
	Module Maintenance	Front	Front	Front	Front
	PSU & Others Maintenance	Front	Front	Front	Front
	Panel Installation Type	Fixed	Fixed	Fixed	Fixed
	Max Rigging QTY.	100	100	100	100
	Certificate	ETL	ETL	ETL	ETL
